Sid Battery Balancers.

257 Posts
13 Users
0 Likes
3,090 Views
(@aquaticslive)
Reputable Member
Joined: 4 years ago
Posts: 249

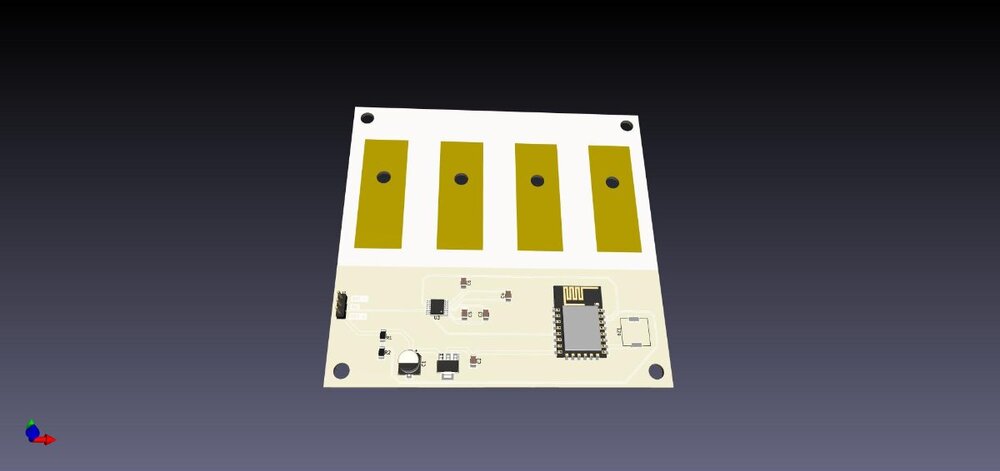

Trying out a one sided aluminum PCB from JLCPCB for a 4S 12v interface board to mount Sid's balancers.  There is a discount for these aluminum boards so giving them a shot.  Just a Rev1 of it so if doesn't work out I have a backup design ready with a normal PCB.  This setup isn't really suited for the 16S folks but seemed like an easy setup for 12V folks.  I don't see many standalone wifi balancers out there so if this works out might be some people that want this besides me.  I have My bank is split up so I have a need for a few of these right away.  My current build works but is definitely dev.  I did a quick test with an aluminum plate and thin pcb then mounted a heat sink to the back for a mosfet and it was transferring heat really well so this might be a handy way to to do this for a more modular setup.






ReplyQuote
(@the-blind-wolf)
Prominent Member
Joined: 4 years ago
Posts: 878
Topic starter

I don't like this fourm, its all a bunch of gobbley guk and the format is so bad its not even funny.



Anyhow, since I take it our inbox of message didn't transfer, I lost the mailing addy to the person who was going to make up the balancers I had to a heatsink and all the wireing since I can't solder at all.  I found 7 Ion balancer that will need to be switched to the LFO setting and I think one of them is already set at that as I had 3 more LFO ones but only two of them that wasn't screwed up.  One of them I actually did get to work and I had another that I lost and have yet found.  anyhow.  I got 8 of them as far as I know 7 of them needs to be switch to the other setting.  I also included the connectors I use to quick connect wires.  Will need the Positive wire to have at least one knot in the wire so I know which one is hot and which one isn't.



Anyhow Message me with you Mailing addy and I can ship this out as I got it already packaged and waiting for a label.
